Material Handling Equipment Forklift Paper Roll Clamp

Product Description

---

1. Applications:

Forklift Paper Roll Clamp,as one kind of material handling equipment meeting the needs of industries from stevedoring to printing for damage free roll handling with maximum efficiency.

2. Features:

-Thin arm profile and smooth arm greatly eases roll breakout and permits close stacking.

-Continuous 360 degree rotation,any angle position of lock function,revolving positing 90degree or 180 degree.

-Hydraulic retention of cylinder valves is to ensure reliable lamping of long distance transportation.

3. Specifications of Paper Roll Clamp material handling equipment

Capacity	Roll	Catalog	Type	Mounting	Mounting	Long	Short	Long	Weight	Effective	Horizontal
	Range	Order No.		Class	Angle	Arm	Arm	Arm		Thickness	Center of
						Thickness	Length	Thickness			Gravity
(kg)	(mm)					A(mm)	C(mm)	B(mm)	(kg)	ET(mm)	CGH(mm)
1200	410-1300	RCF15F-013A	A	II	0°	790	580	330	354	135	221
1300	330-1150	RCF15F-014A	A	II	0°	685	515	330	343	135	216
1100	450-1500	RCF15F-015A	A	II	1.5°	890	680	330	435	150	270
1000	560-1600	RCF15F-016A	A	II	1.5°	940	730	330	455	150	290
2000	250-1300	RCP20F-001A	A	II	0°	825	570	45	677	197	287
2000	250-1300	RCP20F-001B	B	III	0°	825	570	45	690	237	325
2000	630-1300	RCF20F-002A	A	II	0°	825	570	45	667	197	282
2000	630-1300	RCF20F-002B	A	III	0°	825	570	45	681	237	320
2000	250-1500	RCP20F-003A	B	II	0°	955	775	95	751	197	283
2000	250-1500	RCP20F-003B	B	III	0°	955	775	95	765	237	307
2000	530-1500	RCF20F-004A	A	II	0°	955	775	95	744	197	280
2000	530-1500	RCF20F-004B	A	III	0°	955	775	95	758	237	304
2000	630-1600	RCF20F-005A/B	A	II/III	0°	955	775	95	755	183/216	301
2000	350-1600	RCP20F-006A/B	B	II/III	0°	955	775	95	765	183/216	304
1700	680-1830	RCF20F-007A	A	III	0°	1130	930	115	880	239	445
1700	380-1830	RCP20F-008B	B	III	0°	1130	930	115	886	239	445
2700	330-1350	RCP30F-009B	B	III	0°	850	570	65	759	198	272
2700	590-1350	RCF30F-012B	A	III	0°	850	570	65	752	198	272
2700	250-1520	RCP30F-011B	B	III	0°	955	685	50	830	198	307
2700	560-1520	RCF30F-010B	A	III	0°	955	685	50	823	198	307
2000	250-1300	RCS20D-001A	C	II	0°	825	560	45	717	197	269
2000	250-1300	RCS20D-001B	C	III	0°	825	560	45	731	237	307
2700	250-1300	RCS30D-002A	C	II	0°	845	570	70	854	203	277
2700	250-1300	RCS30S-002B	C	III	0°	845	570	70	858	198	272
3500	250-1520	RCP35F-001B	B	III	0°	1000	670	65	1190	218	320
3500	250-1520	RCP35F-001C	B	IV	0°	1000	670	65	1199	218	320
3500	610-1520	RCF35F-002B	B	III	0°	1000	670	65	1180	218	320
3500	610-1520	RCF35F-002C	B	IV	0°	1000	670	65	1190	218	320
2700	360-1830	RCP35F-003B	B	III	0°	1165	810	65	1289	218	353
2700	360-1830	RCP35F-003C	B	IV	0°	1165	810	65	1298	218	353
2700	635-1830	RCF35F-004B	A	III	0°	1165	810	65	1280	218	353
2700	635-1830	RCF35F-004C	A	IV	0°	1165	810	65	1289	218	353
4000	250-1300	RCP35F-007B	B	III	0°	875	575	65	1146	218	295
4000	250-1300	RCP35F-007C	B	IV	0°	875	575	65	1155	218	295
4000	560-1300	RCF35F-008B	A	III	0°	875	575	65	1137	218	295
4000	560-1300	RCF35F-008C	A	IV	0°	875	575	65	1146	218	295
4100	250-1520	RCP45F-001C	B	IV	0°	965	680	85	1294	198	310
4100	530-1520	RCF45F-002C	A	IV	0°	965	680	85	1285	198	310
3400	360-1830	RCP45F-003C	B	IV	0°	1105	815	85	1385	198	338
3400	660-1830	RCF45F-004C	A	IV	0°	1105	815	85	1376	198	338
2700	450-2200	RCP45F-005C	B	IV	0°	1305	915	85	1490	198	380
2700	850-2200	RCF45F-006C	A	IV	0°	1305	915	85	1480	198	380
4500	250-1300	RCP45F-007C	B	IV	0°	900	565	85	1242	198	284
4500	560-1300	RCF45F-008C	A	IV	0°	900	565	85	1233	198	284

4. Options and Accessories:

Custom designed opening ranges.

Positioned short arm or fixed short arm.

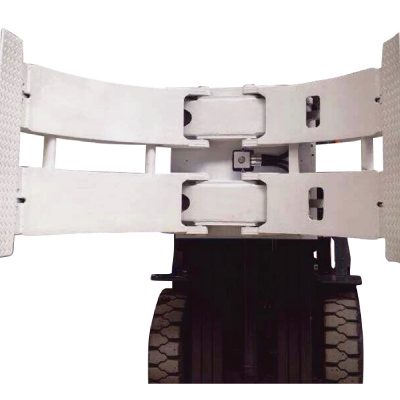

Split long arm.

Special pads

Our Advantages

Why choose us as reliable supplier or work as local dealer with us?

1.Experienced technical team, more professional service
HUAMAI is made up of a team of members who have years of experience with European forklift trucks and its attachments.

2. Wide product range, custom design, provide total solution

HUAMAI has grown rapidly into a sizeable company specialized in producing a comprehensive range of hydraulic and mechanical attachments. The major categories of hydraulic attachments include rotating type, sliding arm type, side-shifting/hinged type, special purpose type and others.

3. Priority support, if agency/dealer

If you a local dealer, can achieve HUAMAI agent policy support, including fast delivery time, competitive price and accessories support, ect.

4. Own factory, competitive price

Our factory covers an area of 10,000 square meters, fully equipped with modern manufacturing equipments and facilities. Scale production and no middlemen will save the purchasing cost.

5. Sales record and voice from our customer,which prove our good performance

Quick Details

---

Place of Origin: Fujian, China (Mainland)
Brand Name:HUAMAI
Model Number: HUAMAI-Hydraulic-1.7-4.5T Paper Roll Clamp
Capacity: 1700-4500kg
Roll range: 250-1830mm
Mounting class: II/III/IV
Long arm length: 825-1305mm
Short arm length: 560-915mm
Long arm thickness: 45-115mm
Weight: 677-1490kg
Surface treatment: Painted
Key parts: World class
Warranty: 12mms or 2000 working hrs
