BBH1000 Economical extendable fork carriage mounted big bag lifter

Type:BBH 1000 Fork Carriage Mounted Big Bag Lifter

The Big Bag Lifter is an economical way to handle single bag.

Safe working load:1000kg

Installation method: Carriage mounted

Both extendable BBH1000 and non-extendable BBH1000F are optional

Unit weight:68.0kg

Surface treatment: painted finish

SPECIFICATIONS

Inner Position	L(mm)	H(mm)	Capacity(kg)
1	860	840	1000
2	995	980	910
3	1130	1110	830
4	1265	1245	760
5	1400	1380	710

Quick Details

---

Place of Origin: Fujian, China (Mainland)
Brand Name: HUAMAI
Model Number: BBH 1000
After-sales Service Provided: No overseas service provided
Product Name: BBH 1000 Fork Carriage Mounted Big Bag Lifter
Type: BBH 1000
Safe working load: 1000kg
Installation method: Carriage mounted
Unit Weight:68.0 kg
Surface treatment: Painted finish
Inner Position L(mm): 860mm
Inner Position H(mm): 840mm
Capacity(Kg): 1000KG

---

Specifications

Steel Manual Mechanical Lifter To Handling Two Bags
MOQ:2 Unit
Material: Steel
Unit Weight:153.5kg
Manufacturer

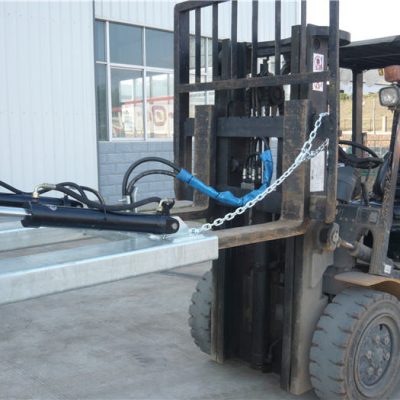

Mechanical Equipment Hydraulic bulk big bag lifter For Forklifts
It is an economical way to handle two bags,reaching 1400MM, with extra height 1380mm when full extended.

SPECIFICATION
*Safe working load:
2000kg

*Installation load:
Carriage mounted

*Unit weight:
153.5kg
*Surface Treatment:
Standard painted finish

*Packaging & Delivery

Packaging Details: Seaworthy Package

Delivery Detail: within 10-15days after receiving deposit or confirmation

Inner position	L(mm)	H(mm)	Capacity(Kg)
1	1410	785	2x1000
2	1535	930	2x910
3	1670	1060	2x830
4	1805	1195	2x760
5	1940	1330	2x710
