Hydraulic Attachments Hinged Fork Forklift

Features

Proven durable construction design, overall frame work adopts full steel structure, high strength, can meet the needs of high strength work.

Body hinger, using polymer composite bushing,hardness is twice as general copper sleeve!fully extended busing life!Because of its self-lubricating fuction without regular filling grease can avoids rapid wear of the lining sleeve for the pin shaft fracture failure.

Good field of vision, safe and reliable.

Videos

Specification

Capacity @ Load Center (kg @ mm)ModelCarriage Width (mm)Truck Mounting Class Hinged Forks Mounting ClassOverall Height (mm) Tilt Forward / Tilt BackwardWeight (kg)Effective Thickness (mm)Horizontal Center of Gravity (mm)
 2000 @ 500 HFB20D-001A 1040 IIII 955 45° / 25° 320 310 132
 2500 @ 500 HFB25D-002A 1040 IIII 955 45° / 25° 320 390 132
 3000 @ 500 HFB30D-003A 1100 III III 968 45° / 25° 335 325 132
 3500 @ 500 HFB35D-002B 1100 IIIIII 1175 45° / 25° 400 383 132
 4000 @ 500 HFB40D-003B 1100 III III 1388 45° / 25° 480 395 195
 4500 @ 500 HFB45D-004B 1450 III III 1388 45° / 25° 800 425 195

Note

Obtain the actual capacity of the forklift and attachments from the forklift manufacturer,

One/Two sets additional oil circuit required on forklift

Can be customized according to customer requirements of various width.

Please contact the sales from HUAMAI

ModelMin.Hydraulic Flow(L/min)Rec. Hydraulic Flow(L/min)Max.Hydraulic Flow(L/min)Rec. Hydraulic Pressure(Bar)

HFB

19

38

57

35

Option

Forks
Bucket
Heighten load backrest

Application

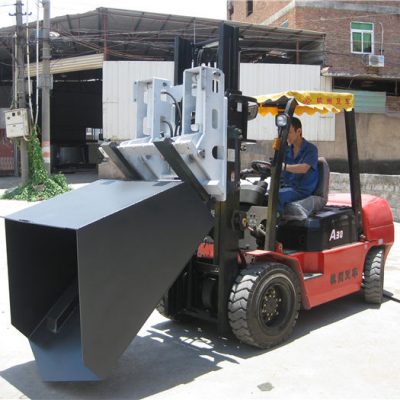

Hinged forks are safe and efficient to dump bulk cargo container ; Configurated with bucket to shovel all loosen goods such as sand, coal, grain, fertilizer, sod and the blocks, ect.

Quick Details

Place of Origin: Fujian, China (Mainland)
Brand Name: HUAMAI
Model Number: HFB20D-001A
Product Name: Hinged fork forklift
Type: HFB20D-001A
Mounting Class: II
Carriage Width (mm): 1040mm
Overall Height (mm): 955mm
Tilt Forward / Tilt Backward: 45° / 25°
Weight (kg): 320kg
Effective Thickness (mm): 310mm
Horizontal Center of Gravity (mm): 132mm
Hinged Forks Mounting Class: II
